 Data Sheet

Description

Frische und aktuelle Informationen über den IsoGate Board finden Sie hier

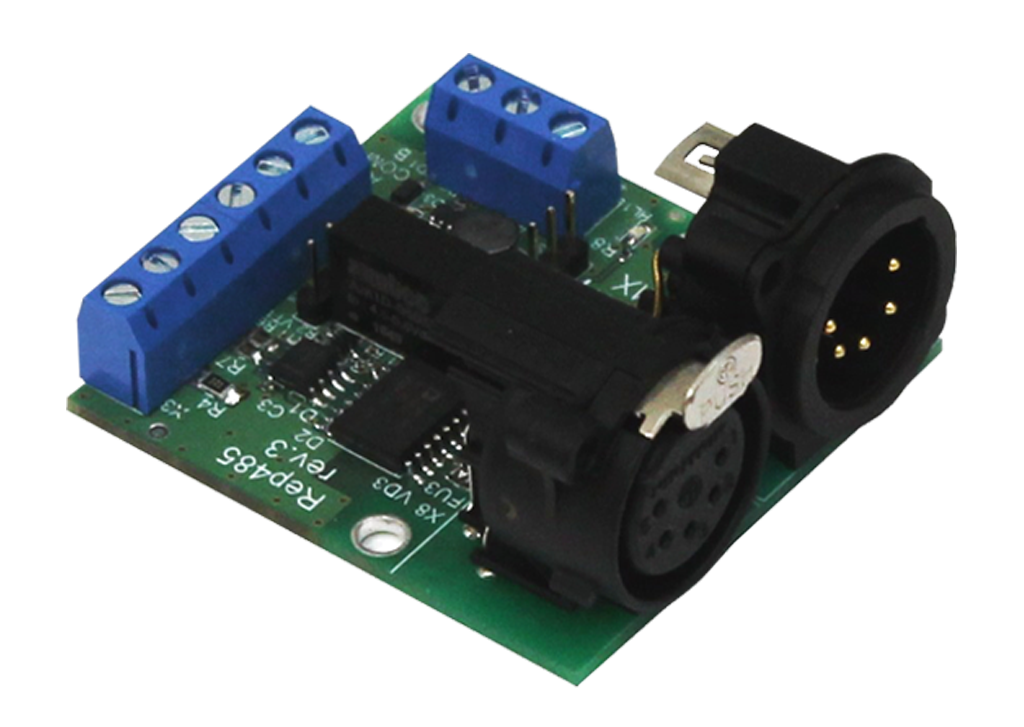

OEM board for integration into third-party fixtures and installations. IsoGate Board is capable to amplify DMX512 signal or other signals based on RS-485 physic.

Key Features

• Galvanic isolation
• Powered from 5VDC or 9-36VDC
• Customisable direction
• Terminal connectors and XLRs





Specifications

Type: Repeater
Housing: OEM
Operating Temperature: -20…+60°C
Dimensions, mm: 58(D) x 27(H) x 50(W)
Weight: 0.05 kg
Mounting: Inside stage equipment or lighting fixtures
Power supply: 5VDC or 9-36VDC
Input power (max): 1W
Indicators: LED for power
DMX ports: 2x XLR
DMX connectors: XLR and terminals
Setup: 2 jumpers
Package contents: IsoGate OEM Compact



Product Line

2 DMX ports (5-pin, terminals) DC 5-36 V
Product code: IGB-5-1D
EAN: 5060452247120

2 DMX ports (3-pin, terminals) DC 5-36 V
Product code: IGB-3-1D
EAN: 5060452247113



Accessories

DMX-ACC-5M3F Adapter (5-pin)M – (3-pin)F
DMX-ACC-5F3M Adapter (5-pin)F – (3-pin)M
