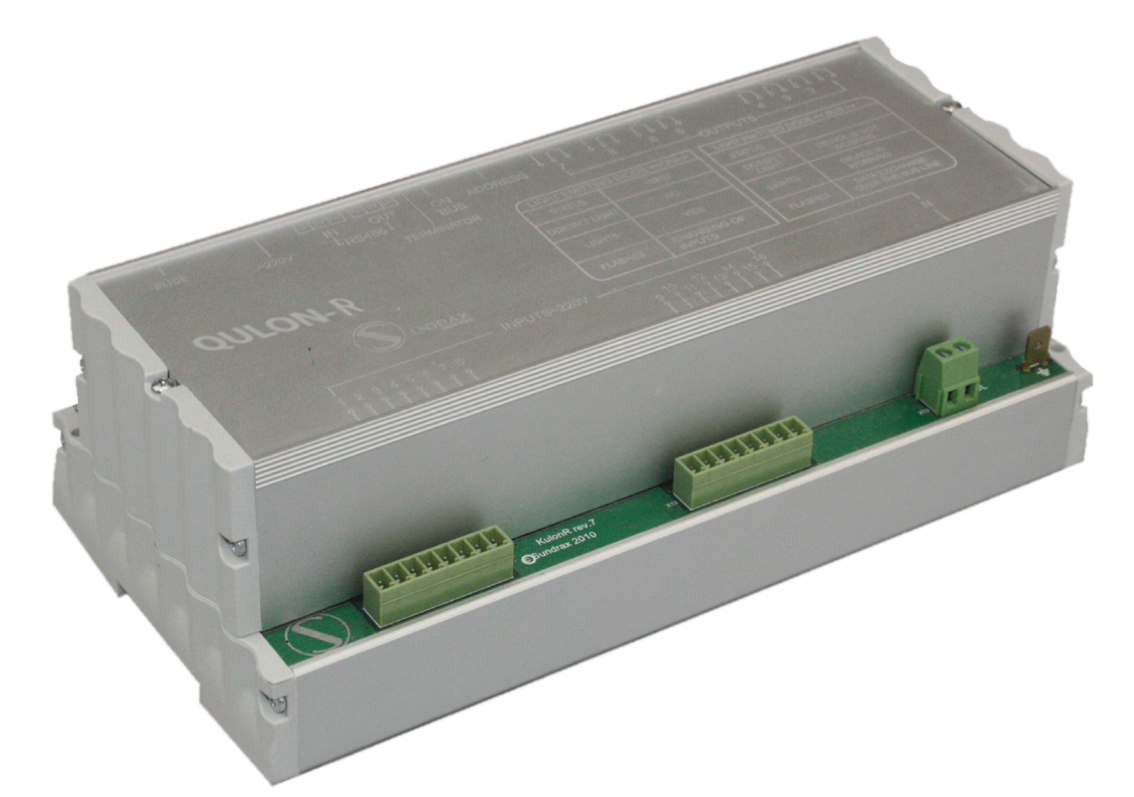

QULON R – Extension module for outdoor lighting control
Description
Outdoor lighting control extension module QULON R is additional module to Qulon Central Control and Monitoring System for road & street lighting that provides additional 16 independent inputs and 8 independent relay outputs to the Gateway.
Key Features
- Connection to central controller QULON C over the RS-485
- Full galvanic isolation RS-485 interface
- 16 independent inputs
- 8 independent relay outputs
- Built-in power supply
Specifications
| Relay outputs: |
8 (6 on/off, 2 changeover) |
| Voltage control inputs: |
16 |
| MAX voltage at inputs: |
250 V |
| MAX voltage and current at outputs: |
250 V, 5 A |
| Connectors: |
Terminal blocks 15EDGVC |
| Serial interface: |
RS-485 |
| Setup: |
remote via QULON C, DIP switcher |
| Input Voltage: |
~100-270 V, 50/60 Hz oder 12-30V |
| Operating Temperature: |
-40…+70°C |
| IP Rating: |
IP 20 |
| Dimensions: |
105 x 210 x 75 mm |
| Mounting: |
DIN-rail in the power cabinet |
Product Line
| 8 relays, 16 control points |
QUL-R-EXT-816 |
Accessories
| DIN rail mounting kit |
QUL-C-AC-DIN |
QULON R – Extension module for outdoor lighting control
Qulon-R – Extension module for outdoor lighting control
Description
Outdoor lighting control extension module Qulon-R is additional module to Qulon Central Control and Monitoring System for road & street lighting that provides additional 16 independent inputs and 8 independent relay outputs to the Gateway.
Key Features
- Connection to central controller QULON-C over the RS-485
- Full galvanic isolation RS-485 interface
- 16 independent inputs
- 8 independent relay outputs
- Built-in power supply
Specifications
Relay outputs: 8 (6 on/off, 2 changeover)
Voltage control inputs: 16
MAX voltage at inputs: 250 V
MAX voltage and current at outputs: 250 V, 5 A
Connectors: Terminal blocks 15EDGVC
Serial interface: RS-485
Setup: remote via QULON-C, DIP switcher
Input Voltage: ~100-270 V, 50/60 Hz oder 12-30V
Operating Temperature: -40…+70°C
IP Rating: IP 20
Dimensions: 105 x 210 x 75 mm
Mounting: DIN-rail in the power cabinet
Product Line
8 relays, 16 control points QUL-R-EXT-816
Accessories
DIN rail mounting kit QUL-C-AC-DIN
