Description

Frische und aktuelle Informationen über den Splitter Duo Board finden Sie hier

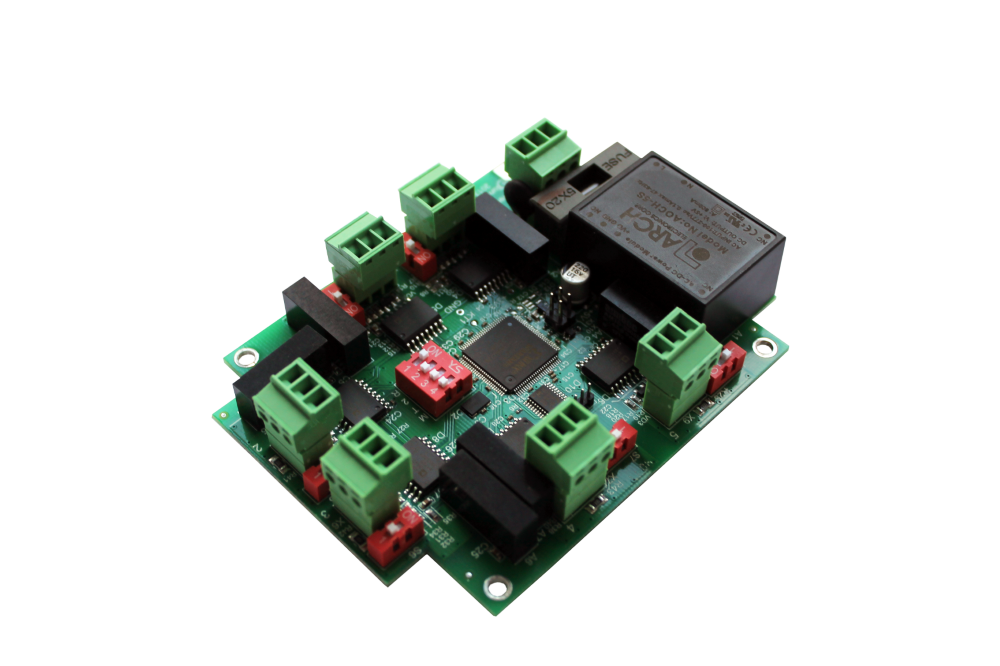

Splitter Duo Board is a double-input OEM DMX splitter with 6 DMX input/output ports that operates as a regular splitter with 1 input and 5 outputs as well as two separated 1-to-2 splitters. All input and output channels are galvanically isolated from each other. The device is powered by 100-250V industrial AC mains, power consumption is less than 5 watts. Input, output DMX cables, and power cables are connected by terminal blocks.



Key Features

• Supports bidirectional communication (DMX512 and RDM)
• No buttons
• OEM board ready for integration into fixtures, furniture, custom cases etc



Specifications

Type: Splitter
Housing: OEM board
Operating Temperature: -40…+60°C
Dimensions, mm: 103(D) x 19(H) x 79(W)
Weight: 0.15 kg
Mounting: Stage equipment, lighting fixtures, etc.
Power supply: ~100-250 VAC, 50/60 Hz
Input Power (max): 5 W
Indicators: LEDs for DMX input
Supported protocols: DMX512, RDM
DMX input ports: 1 or 2 isolated
DMX output ports: 4 or 5 isolated
DMX connectors: 15EDGVC terminal blocks
Setup: DIP switchers

Product Line

2 DMX input/4 DMX outputs, DC 9-36V
Product code: SPAD-0-2D4D-DC-OEM
EAN: 5060452246345

2 DMX input/4 DMX output, AC 100-250V
Product code: SPAD-0-2D4D-AC-OEM
EAN: 5060452246338
